Aluminium J Hook For Solar Panel Mesh Bird Barrier Birdaway Deterrent Clips Washers

Aluminium J Hook For Solar Panel Mesh Bird Barrier Birdaway Deterrent Clips Washers

MOQ:	5000pcs
Price:	$0.098-0.35/piece
Payment Terms:	T/T, D/A, D/P, L/C, Western Union
Supply Ability:	5 million sets

Detail Information

Product Description

Detail Information

Place of Origin:

Hebei, China

Certification:

ISO9001

Type:

J Hook

Material:

Aluminium

Finish:

Polished

Shank Type:

Smooth, Spiral

Usage:

Fixed Solar Panel

Application:

High Temperature Insulation Material

Feature:

Durable

Name:

Solar Fixed Insulation Nail

Packaging Details:

Cartons+plastic Bags+pallet

Highlight:

aluminium j hook for solar panel

j hook for solar panel mesh bird barrier

aluminium solar panel mesh clips

Product Description

J Hook Solar Panel Mesh Bird Barrier Birdaway Deterrent Clips Washers for Roof Mounting Essential Solar Mounting System

Product Description

Solar Panel Clips and Mesh Kit Installation Guide

Place provided Solar Panel Bird Control Fastener J Hook clips with every 30-40cm along the underneath of the solar panel frame and pull tight.
Roll out the solar panel wire mesh and cut into manageable 2 meter lengths for easier handling. Position the wire mesh in place, making sure the fastening rod points upwards so it keeps a downward pressure on the wire mesh to create a firm barrier to the roof. Allow the bottom to flare out and curve along the roof, this will ensure rodents and birds cannot access under the wire mesh.
Attach the fastening washer and push firmly to the end to tightly secure the mesh.
When joining the next section of wire mesh, overlay approximately 10cm and join the 2 pieces with cable ties to create a complete barrier.
For outer corners; cut upwards from the bottom until the bend point.
For inner corners: cut the wire mesh upwards from the bottom until the bend point, secure any overlay sections together using cable ties.

Product Features

An innovative system designed specifically to keep birds out from under solar arrays protecting the roof, wiring and equipment from damage.
Solar clips are recommended every 450mm (18 inches) 2 clips on short edge 3 clips on long edge.
Solar clips bind the mesh to the panels without drilling holes or damaging the system
A new product that is fast easy & highly effective, making solar panel bird exclusion straight forward
This non-penetrating system is fast and easy to install and can be removed for service.
A typical solar panel is approximately 1.6m tall and 1m wide, on a typical panel one should use 3 clips on each long edge and 2 clips on each short edge.

technical Parameters

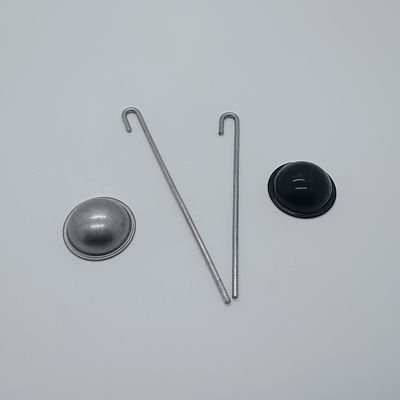

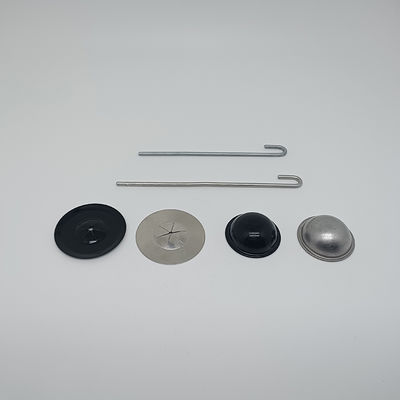

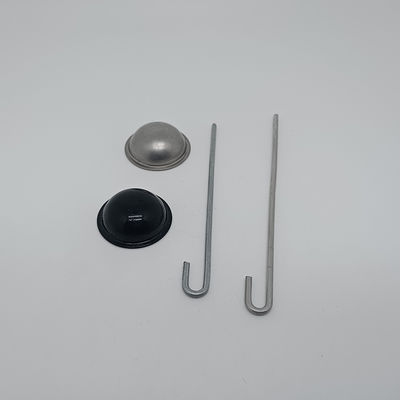

Common specifications	Length: 120MM Diameter: 10GA , 14GA
Material	J-Hook	Aluminum ,Stainless steel
	Washer	Stainless steel
surface treatment	Cleaning (Aluminum), Passivation ( Stainless steel ), Black coating (washer)
production workmanship	Automated production
supply capability	10000Pcs/hour
Application	Solar panel mesh clips contain self locking washers and J-hooks
remark	Technical parameters are available upon request

Aluminium J Hook For Solar Panel Mesh Bird Barrier Birdaway Deterrent Clips Washers 0

Aluminium J Hook For Solar Panel Mesh Bird Barrier Birdaway Deterrent Clips Washers 1

Aluminium J Hook For Solar Panel Mesh Bird Barrier Birdaway Deterrent Clips Washers 2
