Zinc Plated Self Adhesive Insulation Stick Pins 20mm-300mm With Washer

Zinc Plated Self Adhesive Insulation Stick Pins 20mm-300mm With Washer

MOQ: 5000pcs
Price: $0.098-0.35/piece
Payment Terms: T/T, D/A, D/P, L/C, Western Union
Supply Ability: 5 million sets
Detail Information
Place of Origin:
Hebei, China
Certification:
ISO9001
Type:
Self Stick Up Pins
Insulation Features:
Fire Resistant, Soundproofing Insulation, Water Resistant
Name:
Self Adhesive Insulation Pin
Surface Treatment:
Copper Coated,Polished, Galvanized
Pin Size:
20mm-300mm As You Need
Finish:
Zinc Plated
Application:
Marine Engine Rooms
Usage:
Marine Insulation
Packaging Details:
Cartons+plastic Bags+pallet
Highlight:

self adhesive insulation stick pins 20mm

,

zinc plated self adhesive insulation stick pins

,

20mm self adhesive insulation pins

Product Description

Adhesive Self Adhesive Insulation Pin with Washer Self-Stick and Perf Pin Hanger Adhesive






Product Description



Aluminum insulation nails, also known as self-adhesive insulation nails, have the advantages of being convenient for workers to construct, easy to bond, and time-saving. The thickness of galvanized sheet is between 0.5MM-0.6MM. The common specification abroad is that the side length of the bottom plate is the same as the length of the nails. Generally, if the side length of the bottom plate is 3.8CM, the nails will be made 3.8CM long and can be made of stainless steel or aluminum wire.











Product Features



1. Using high-strength industrial grade adhesive, specially designed for harsh marine environments such as humidity and salt spray, to ensure strong adhesion on surfaces of marine materials such as metal, fiberglass, and wood, with excellent peel and shear resistance.



2. Strong weather resistance, able to withstand long-term seawater immersion, ultraviolet radiation, and temperature fluctuations, with a long-lasting and stable bonding effect, reducing the risk of detachment.



3. Suitable for high salinity environments such as coastal and offshore areas, ensuring structural safety and reliability.



4. Self adhesive design does not require drilling, welding, or screw fixation, and can be directly pasted by tearing off the backing adhesive, greatly reducing construction time, especially suitable for emergency repair or temporary fixing scenarios.



5. The adhesive layer has excellent sealing properties, which can effectively block moisture infiltration and prevent metal corrosion or structural leakage caused by drilling.









technical Parameters



Base
Material
Galvanized steel / Stainless steel
Dimensions
50 x 50 mm (2” x 2”) ,25X25mm(1”X1”)
Thickness
0,4 mm (28 ga.)
Perforation
44 holes, dia. 3.0 mm
Shank
Material
Mild steel(Galvanized or copper coating)
Stainless steel ,Aluminum
Diameter
2,7 mm (12 ga.)
Lengths
32 to 270 mm (1-1/4” to 10-5/8”)
Locking washer
Material
Galvanized spring steel/ Stainless steel
Diameter
Round : 30mm , Square:1-1/8 X 1-1/4””
Thickness
0.4 mm (28 ga.)
Edges
Bevelled

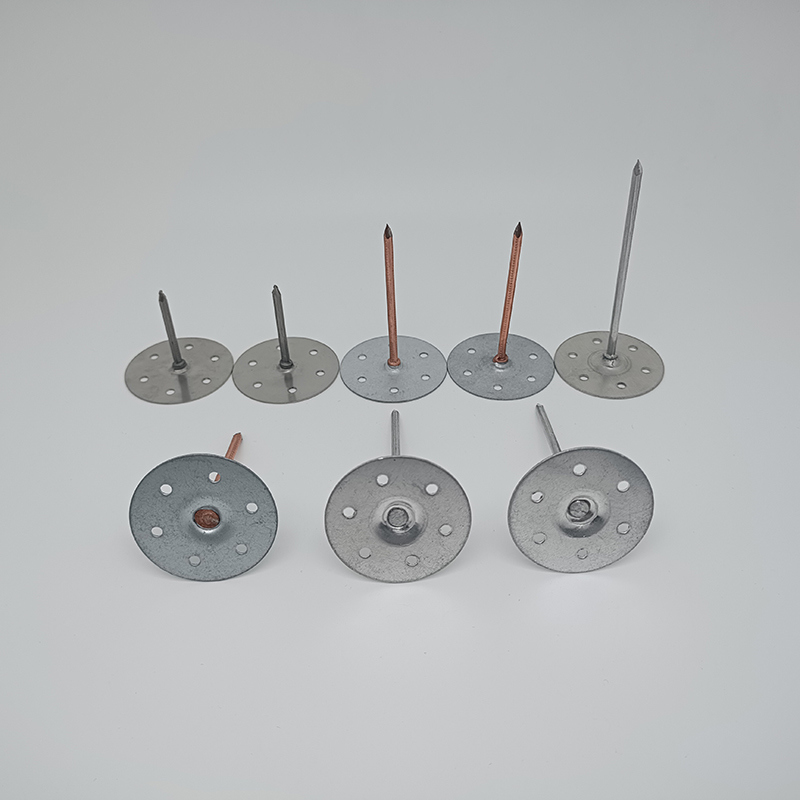

Zinc Plated Self Adhesive Insulation Stick Pins 20mm-300mm With Washer 0

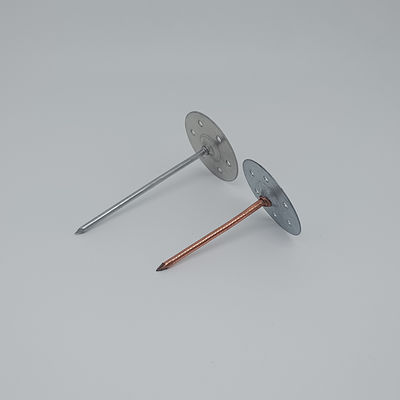

Zinc Plated Self Adhesive Insulation Stick Pins 20mm-300mm With Washer 1

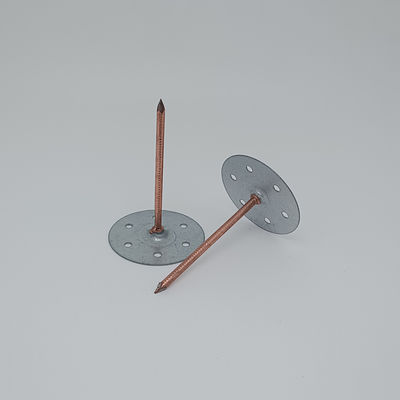

Zinc Plated Self Adhesive Insulation Stick Pins 20mm-300mm With Washer 2
