Zinc Finish Self Stick Insulation Hangers Stainless Steel Marine & Greenhouse Fixing Spindle Pins

Zinc Finish Self Stick Insulation Hangers Stainless Steel Marine & Greenhouse Fixing Spindle Pins

MOQ: 5000pcs
Price: $0.098-0.35/piece
Payment Terms: T/T, D/A, D/P, L/C, Western Union
Supply Ability: 5 million sets
Detail Information
Place of Origin:
Hebei, China
Certification:
ISO9001
Type:
Self Stick Up Pins
Material:
Steel
Base Size:
25*25mm, 35*35mm, 50*50mm
Name:
Self Adhesive Insulation Pin
Pin Size:
20mm-300mm As You Need
Finish:
Zinc Plated
Application:
Marine Engine Rooms
Usage:
Marine Insulation
Packaging Details:
Cartons+plastic Bags+pallet
Highlight:

Zinc Finish self stick insulation hangers

,

Greenhouse Fixing Spindle Pins

,

Marine self stick insulation hangers

Product Description

Zinc Finish Self-Stick Insulation Pins - Stainless Steel Marine & Greenhouse Fixing Spindle Pins - Wholesale






Product Description



Self adhesive insulation nail is a type of insulation nail with its own adhesive, consisting of insulation board, nail body, and adhesive. Its feature is that it can directly fix the insulation nails on the surface of the building without using traditional insulation nail bases, eliminating the installation process of the bases and improving construction efficiency.


1. Before construction, it is necessary to ensure that the surface of the building is clean, flat, free of oil stains and loose substances, otherwise the adhesion of the self-adhesive insulation nails will be affected.



2. Self bonding insulation nails must be perpendicular to the surface of the insulation board to ensure that the nail body can penetrate the insulation board and be fixed on the surface of the building.



3. During construction, attention should be paid to protecting self-adhesive insulation nails and insulation boards from damage.



4. Do not move or adjust the adhesive of the self-adhesive insulation nail until it is completely dry.



5. Self adhesive insulation nails should not be used in positions exposed to sunlight, otherwise it will affect their adhesion and service life.









Product Features



Strong corrosion resistance: The galvanizing process effectively prevents seawater corrosion and is suitable for long-term fixation of ship metal structures and insulation layers. ‌
High bearing capacity: The nail body is made of high-quality steel and can withstand ship vibration and pressure changes. ‌

Easy installation: No need for complex tools, installation can be completed by hammering or welding. ‌

Flame retardant properties: Some products meet the flame retardant standards and comply with ship fire prevention requirements.







technical Parameters



Base
Material
Galvanized steel / Stainless steel
Dimensions
50 x 50 mm (2” x 2”) ,25X25mm(1”X1”)
Thickness
0,4 mm (28 ga.)
Perforation
44 holes, dia. 3.0 mm
Shank
Material
Mild steel(Galvanized or copper coating)
Stainless steel ,Aluminum
Diameter
2,7 mm (12 ga.)
Lengths
32 to 270 mm (1-1/4” to 10-5/8”)

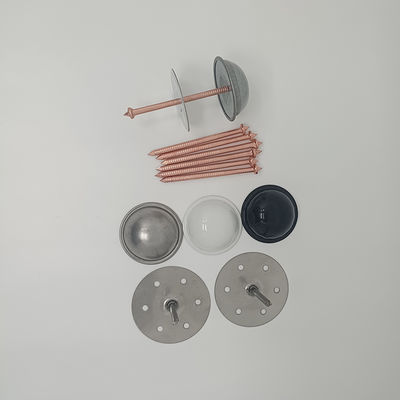

Zinc Finish Self Stick Insulation Hangers Stainless Steel Marine & Greenhouse Fixing Spindle Pins 0

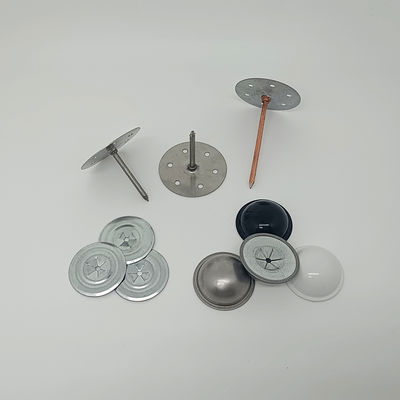

Zinc Finish Self Stick Insulation Hangers Stainless Steel Marine & Greenhouse Fixing Spindle Pins 1

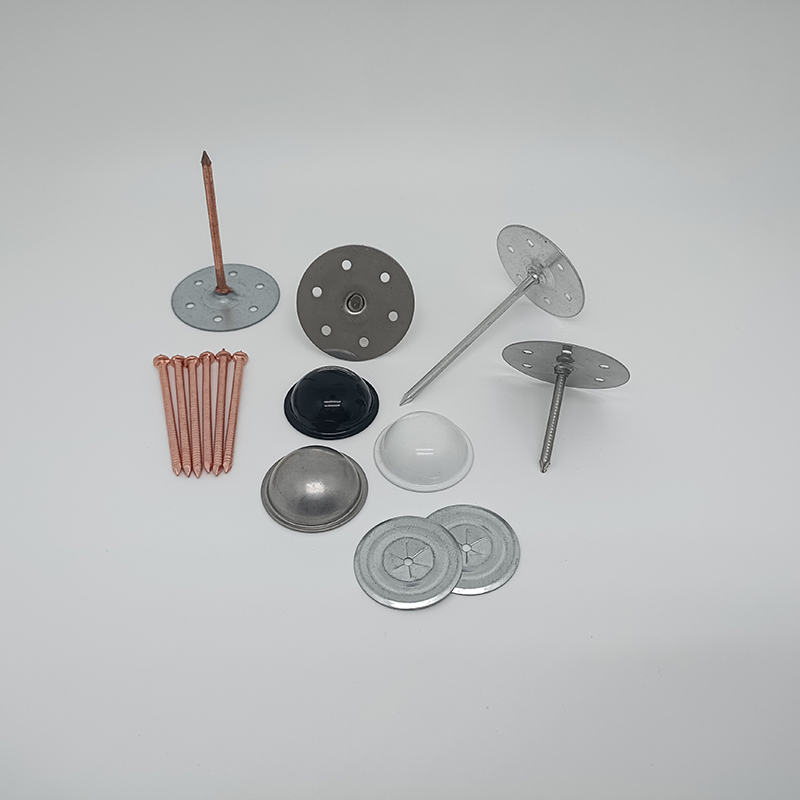

Zinc Finish Self Stick Insulation Hangers Stainless Steel Marine & Greenhouse Fixing Spindle Pins 2





FAQ



Q1 : How can you control your quality?
A1 : For each production processing, We have complete QC system for the chemical
composition and Physical properties. After production, all the goods will be tested, and
the quality certificate will be shipped along with goods.

Q2: Are you a manufacture or trader?
A2: We are truly a manufacturer, we not only can provide the high quality products with the
best price, but also can offer the best pre-sale service and after-service.

Q3 : Do you provide free samples?
A3 : Of course, free samples are available.

Q4 : What is your lead time?
A4 : It usually needs about 15- 20 days after receiving the PO.

Q5 : Can we visit your company?
A5 : Yes, for sure, you are welcome to visit company and our products.
Also, we can talk more about the technique details if you need.

Q6 : What is the warranty of your products?
A6 : Our products have at least 1 year warranty,if any quality problems,
we will take responsibility of the cost of the shipment and the replacement.

Q7: What's the MOQ of trial order?
A7 : No limit, we can offer the best suggestions and solutions according to your condition.

Q8: Why choose us?
A8: We had been in this line for more than 25 years, we can not only provide you high
quality products with competitive price, but also we can supply good technique service
which can help you solve problems.
