Factory Ventilation Duct Self Adhesive Insulation Stick Pins 0.3mm-0.5mm For HVAC System

Factory Ventilation Duct Self Adhesive Insulation Stick Pins 0.3mm-0.5mm For HVAC System

MOQ: 5000pcs
Price: $0.098-0.35/piece
Payment Terms: T/T, D/A, D/P, L/C, Western Union
Supply Ability: 5 million sets
Detail Information
Place of Origin:
Hebei, China
Certification:
ISO9001
Process:
Metal Stamping
Base Thickness:
0.3mm-0.5mm
Name:
Adhesive Metal Steel Pin Anchor With Washer
Insulation Pin Feature:
Fix Insulation
Color:
Silver
Washer:
Round Self Locking Washers
Function:
Fixing Pins Insulation Materials
Packaging Details:
Cartons+plastic Bags+pallet
Highlight:

duct self adhesive insulation stick pins

,

self adhesive insulation stick pins 0.3mm

,

ventilation stick pins for insulation

Product Description

Factory Ventilation Duct Adhesive Anchor Insulation Hanger Stuck up Pins Stick Pins Self Adhesive Insulation Pin for HVAC System






Product Description



Self adhesive rock wool nail is a highly anticipated fixing material in the field of building insulation in recent years. It combines the insulation performance of rock wool with the convenience of self-adhesive tape, providing great convenience for the installation of insulation projects.


The main characteristic of self-adhesive rock wool nails is their self adhesiveness. This type of nail comes with a strong self-adhesive tape on the back, which can be directly attached to insulation materials without the need for additional fixing tools or materials. This feature not only simplifies the installation steps, but also improves work efficiency. In addition, the self-adhesive rock wool nail also has good weather resistance and anti-aging performance, and can maintain a stable fixation effect for a long time under harsh environmental conditions.









Product Features



Self adhesive insulation nails are mainly used in scenarios such as air conditioning ducts, glass curtain walls, and wooden walls, ensuring that the construction surface is clean and free of oil stains. Its core function is to fix insulation materials such as glass wool, suitable for environmentally clean places. The product adopts aluminum nail body (20-30mm long) and galvanized tinplate bottom plate (2222mm to 5050mm in specification), which have the characteristics of aging resistance, temperature change resistance (-30 ℃ to 80 ℃), high bearing capacity (tensile strength ≥ 50N) and moisture resistance, and is suitable for construction in low temperature environments such as air duct insulation and steel structure. When installing, the base surface needs to be cleaned first, fixed with quick drying glue or foam glue, and then penetrated through the insulation board and pressed with self-locking gaskets after curing. The tail can be bent to adapt to different thicknesses.









technical Parameters



Adhesive Side:
Single Sided
advantage:
pollution-free, anti-rust,easy install
Function:
Corrosion prevention / Insulation
Head Diameter:
1.7 0r 3.0mm or customized
insulation pin Type:
insulation nail/pin
Keyword:
Insulation Hanger Pins
Length:
10-100mm
Service:
OEM
Plating:
Galvanized
Type:
perforated pin
Washer thickness:
0.25-0.60mm

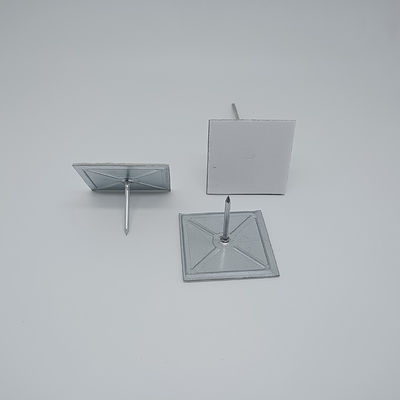

Factory Ventilation Duct Self Adhesive Insulation Stick Pins 0.3mm-0.5mm For HVAC System 0



Factory Ventilation Duct Self Adhesive Insulation Stick Pins 0.3mm-0.5mm For HVAC System 1



Factory Ventilation Duct Self Adhesive Insulation Stick Pins 0.3mm-0.5mm For HVAC System 2
