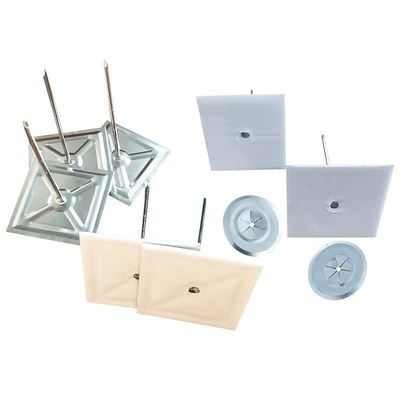

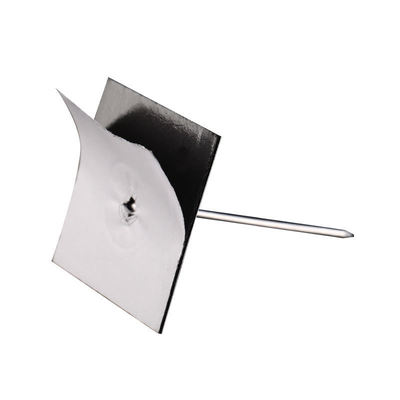

0.3mm-0.5mm Ventilation Duct Self Stick Insulation Hangers Stuck Up Pins Insulation Spikes

0.3mm-0.5mm Ventilation Duct Self Stick Insulation Hangers Stuck Up Pins Insulation Spikes

MOQ: 5000pcs
Price: $0.098-0.35/piece
Payment Terms: T/T, D/A, D/P, L/C, Western Union
Supply Ability: 5 million sets
Detail Information
Place of Origin:
Hebei, China
Certification:
ISO9001
Material:
Metal
Process:
Metal Stamping
Type:
Insulation Nail
Base Thickness:
0.3mm-0.5mm
Application:
Building Construction Material Fixing
Name:
Adhesive Metal Steel Pin Anchor With Washer
Insulation Pin Feature:
Fix Insulation
Packaging Details:
Cartons+plastic Bags+pallet
Highlight:

duct self stick insulation hangers

,

self stick insulation hangers stuck up

,

0.3mm insulation spikes

Product Description

Ventilation Duct Adhesive Anchor Insulation Hanger Stuck up Pins Stick Pins Self Adhesive Insulation Pin






Product Description



Insulation anchors and Insulation hangers are specialized fasteners that securely attach insulation materials to surfaces such as walls, roofs, and other substrates. They come in various types, each suited for specific insulation materials and surface conditions, ensuring a reliable and durable bond across different applications.

Self adhesive insulation nails are composed of high-strength engineering plastic nail bodies and pre coated pressure-sensitive adhesive layers, which can be installed directly by pressing without drilling or auxiliary tools. The adhesive layer is usually made of modified acrylic ester material, with a bonding strength of up to 0.8MPa









Product Features



Self adhesive insulation nails are mainly used in scenarios such as air conditioning ducts, glass curtain walls, and wooden walls, ensuring that the construction surface is clean and free of oil stains. Its core function is to fix insulation materials such as glass wool, suitable for environmentally clean places. The product adopts aluminum nail body (20-30mm long) and galvanized tinplate bottom plate (2222mm to 5050mm in specification), which have the characteristics of aging resistance, temperature change resistance (-30 ℃ to 80 ℃), high bearing capacity (tensile strength ≥ 50N) and moisture resistance, and is suitable for construction in low temperature environments such as air duct insulation and steel structure. When installing, the base surface needs to be cleaned first, fixed with quick drying glue or foam glue, and then penetrated through the insulation board and pressed with self-locking gaskets after curing. The tail can be bent to adapt to different thicknesses.









technical Parameters



Place of Origin
China
Type
insulation nail
Material
Steel
Head Diameter
2.7mm, 3,0mm
Product name:
Self stick insulation self-adhesive insulation nails
Advantage:
good quality and low price
base thickness:
0.3mm-0.5mm
Perforated Sheet Size:
50mmx50mm
Base Gasket:
Double Sided PE Adhesive Foam







0.3mm-0.5mm Ventilation Duct Self Stick Insulation Hangers Stuck Up Pins Insulation Spikes 0





FAQ



Q1 : How can you control your quality?
A1 : For each production processing, We have complete QC system for the chemical
composition and Physical properties. After production, all the goods will be tested, and
the quality certificate will be shipped along with goods.

Q2: Are you a manufacture or trader?
A2: We are truly a manufacturer, we not only can provide the high quality products with the
best price, but also can offer the best pre-sale service and after-service.

Q3 : Do you provide free samples?
A3 : Of course, free samples are available.

Q4 : What is your lead time?
A4 : It usually needs about 15- 20 days after receiving the PO.

Q5 : Can we visit your company?
A5 : Yes, for sure, you are welcome to visit company and our products.
Also, we can talk more about the technique details if you need.

Q6 : What is the warranty of your products?
A6 : Our products have at least 1 year warranty,if any quality problems,
we will take responsibility of the cost of the shipment and the replacement.

Q7: What's the MOQ of trial order?
A7 : No limit, we can offer the best suggestions and solutions according to your condition.

Q8: Why choose us?
A8: We had been in this line for more than 25 years, we can not only provide you high
quality products with competitive price, but also we can supply good technique service
which can help you solve problems.
